3G WCDMA:B1/B8
Firmware Update Remotely
USB 2.0
-30ºC , +70ºC
UL94V0 - IP54
Double RS485 Ports
RTC
Super Capasitor
3 Inputs & 2 Relays
1 x RS232 Port
Smart Comm. Feature
9-36VDC and 9-36VAC Power Supply
IEC 62056-21

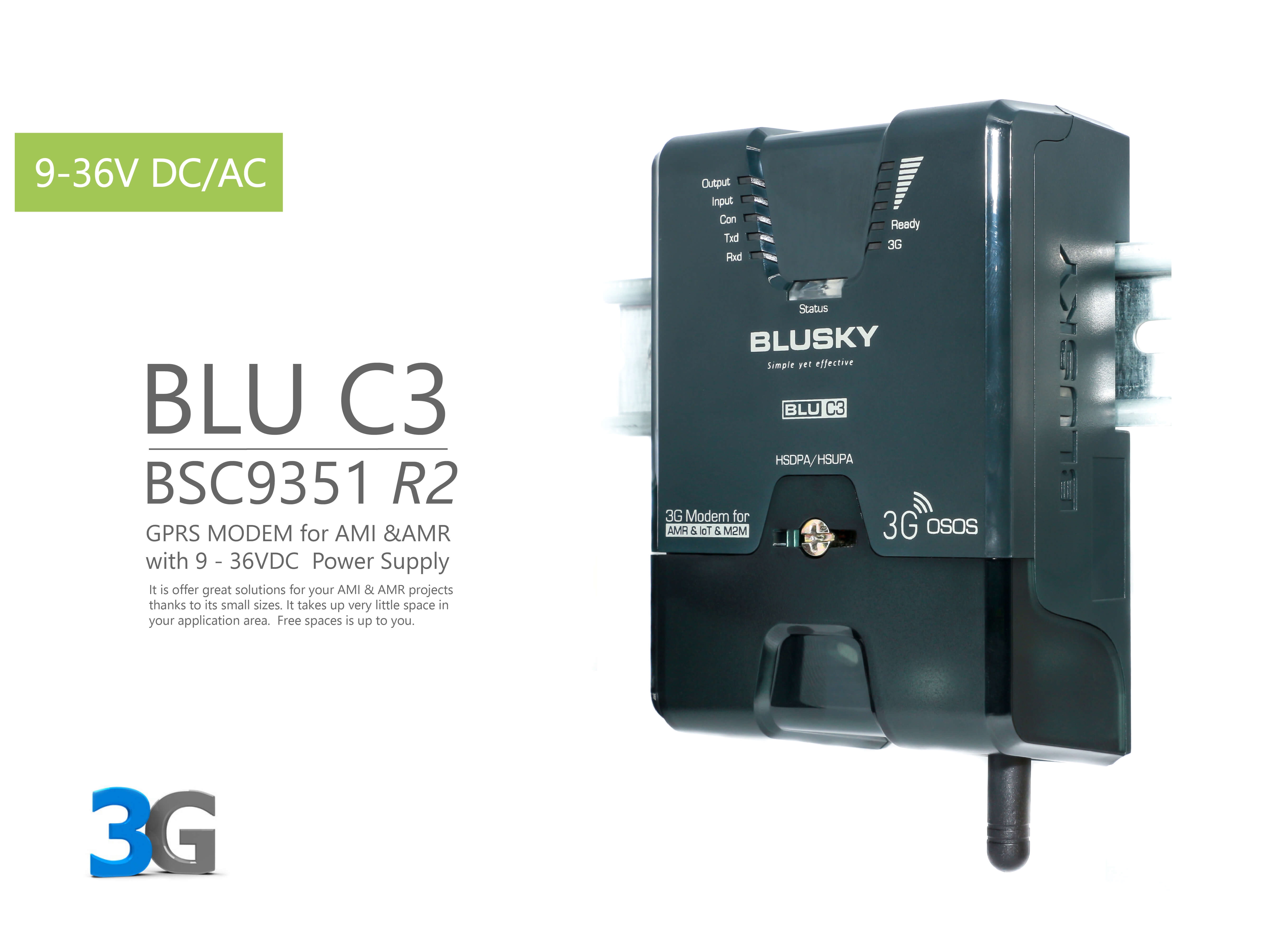

BLU C3/BSC9351R2

Delivery in a week

BLU C3 / BSC9351R2 Our 3G Modem is a top and smart model that offers 24VDC and higher power supply options. Smart communication mode allows the modem to perform programmed reading tasks much faster. It is an industrial type 3G modem designed for use in Smart Grids that offering remote access. Also, It may be preferred for use in different areas of industry. Our products are that meets the specifications of EMRA for Turkey. It supports to IEC 62056-21, DLMS / COSEM, and MODBUS RTU standards. Sealable cover prevents unwanted access and removing from panel. The supply voltage is in the range of 9-36VDC. It provides 2x RS485 port, 1X RS232 Port, 2x Relays , 3x Input ports , Real Time Clock (RTC),Super Capasitor, Additional Memory and Smart Mod . Modems that can be used in Server or Client mode. You can update the firmware or settings of your modem closely or remotely. You can track all processes with 11 leds. You can find all the documents and utilities belonging to our modems on this page and buy them without leaving our website.

Power Supply



: 7-24 VAC / 9-36VDC

Maximum Current



: 700 mA /24VDC

Working Band



: WCDMA:B1/B8 and GPRS/GSM:900/1800MHz

Running Mode



: Server and Client Mod Supported

Com. Ports



: 2 Unit Half Duplex RS485 Comm. Port and 1 Unit RS232 Port

Temperature Range



: -30ºC to + 70ºC Operation, -40ºC to + 80ºC Storage

Protection Class



: IP54 Environmental Conditions and UL94-V0 Non-Flammability Class

Inputs



: 3 Unit 10-48V DC, 5000V Isolated Input

Outputs



: 2 Unit 250V / 10A, NO Contact Relay Output

Super Capasitor



: 1-5 Min. Can Run Modem and Report Energy Interruption Information

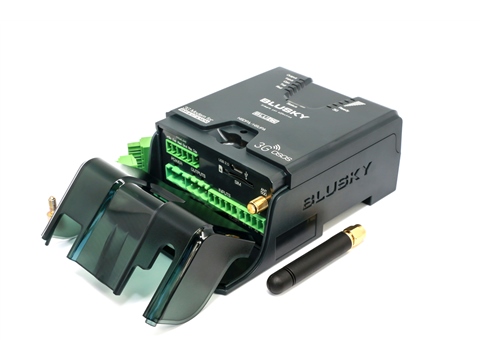

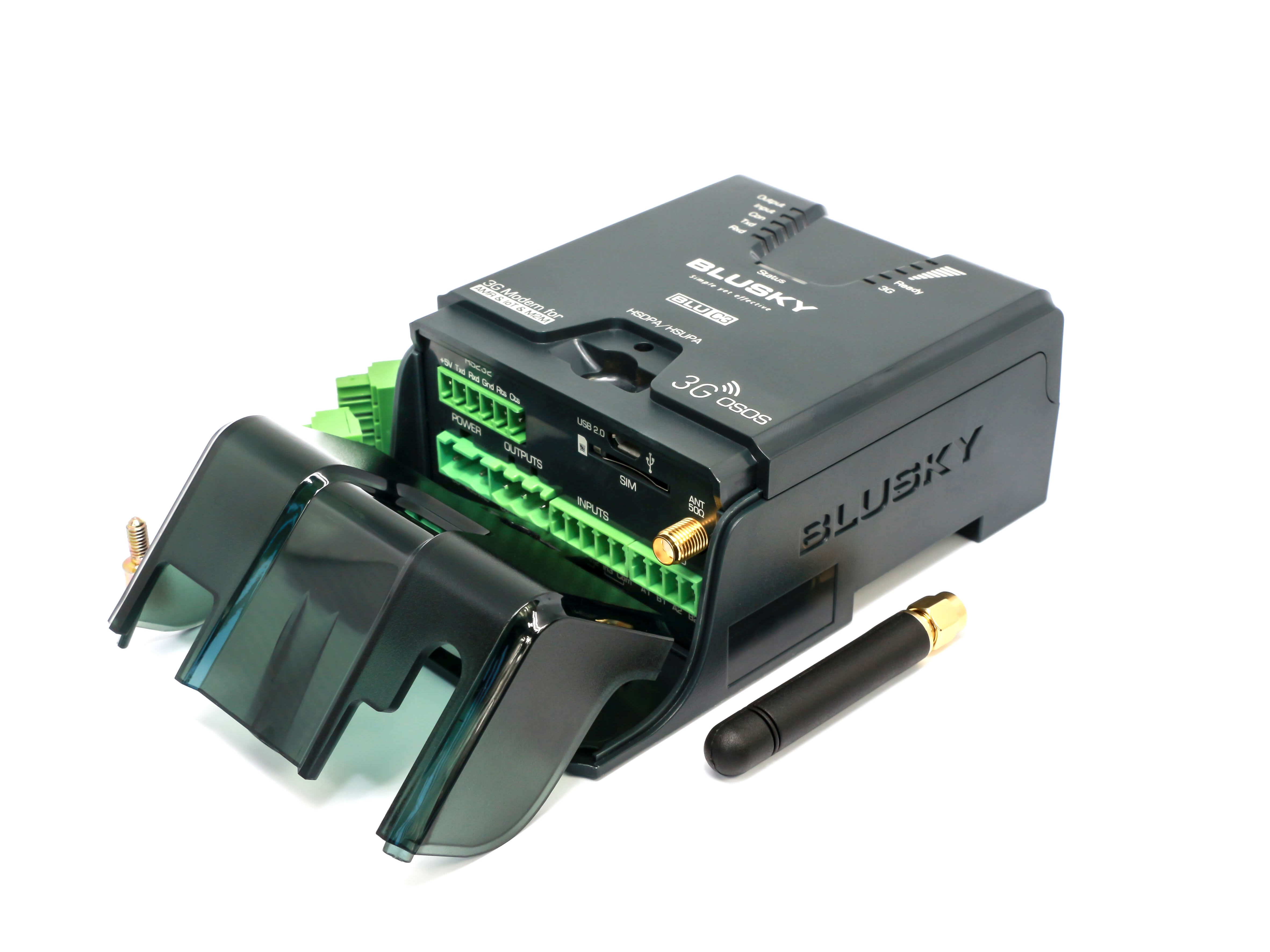

Sealable Terminal Cover



: Semi Transparent Terminal Cover With Screw

Installation



 : 35 mm. DIN Rail and Screw Mounting Option

Rated Current



: 250 mA /24VDC

Impulse Res.



: 1000V

Data



: HSPA/HSPA+, EDGE, GPRS

Port Isolation



: 15kV ESD Protected

PC Com. Port



: USB 2.0 Micro USB Socket

Supported Custom Protocols



: IEC62056-21, DLMS/COSEM and MODBUS RTU

Weight



: 410 Gr.

Antenna



: 3dBi GSM / GPRS Antenna with 3 mt. Wired, Magnet Based and 50Ω SMA Connector

RTC



 : High precision Real Time Clock with battery

Smart Communication

: Supports smart communication. It can automatically read and save data of measuring instruments and meters, and send data to the server in the desired format and time.

Additional Memory



 : 4 Mbytes for Log and Device Data Records

Indicators



: 11 Units Status and Process Tracking Leds

Click the link on the right to download the product brochure

 Product Brochure

BLU C3 / BSC9351R2 Our 3G Modem is a top and smart model that offers 24VDC and higher power supply options.  It is an industrial type 3G modem designed for use in Smart Grids that offering remote access.  It supports to IEC 62056-21, DLMS / COSEM, and MODBUS RTU standards. Sealable cover prevents unwanted access and removing from panel. The supply voltage is in the range of 9-36VDC. It provides 2x RS485 port, 1X RS232 Port, 2x Relays , 3x Input ports , Real Time Clock (RTC),Super Capasitor, Additional Memory and Smart Mod . You can track all processes with 11 leds. You can find all the documents and utilities belonging to our modems on this page and buy them without leaving our website.

Buy Now

C3 3G Pic4


  • Automatic Meter Reading (AMR) and Meter Automation Projects
  • Electricity Distribution Companies' AMI/AMR * Projects
  • Organized Industrial Zones' AMI/AMR * Projects
  • Energy Monitoring Projects of Factories
  • Shopping Centers' AMI/AMR * Projects
  • Free Consumer consumption tracking and billing projects
  • Cloud-Based Individual Energy Monitoring Solutions (with Gridmaster Energy Management Software)
  • Compensation Tracking Projects
  • Waste Water Management Projects
  • Lighting Management Projects
  • Solar Power Plant Monitoring and Control Projects
  • Wind Power Plants Monitoring and Control Projects
  • Natural Gas Stations Monitoring and Control Projects
  • Meteorological Monitoring and Control Projects
  • Agricultural Irrigation and Monitoring Projects
  • Electricity, Water, Heat and Natural Gas Tracking and Billing Projects on Public Housing
  • Prepayment Systems



* AMI/AMR: Advanced Metering Infrastructure / Automatic Meter Reading System

C3 3G Dim

C3 3G Term 24 ENG

Gallery

All Photos Videos

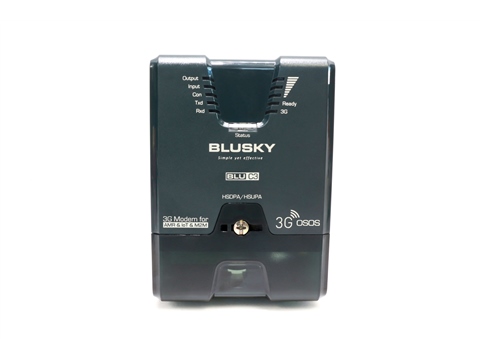

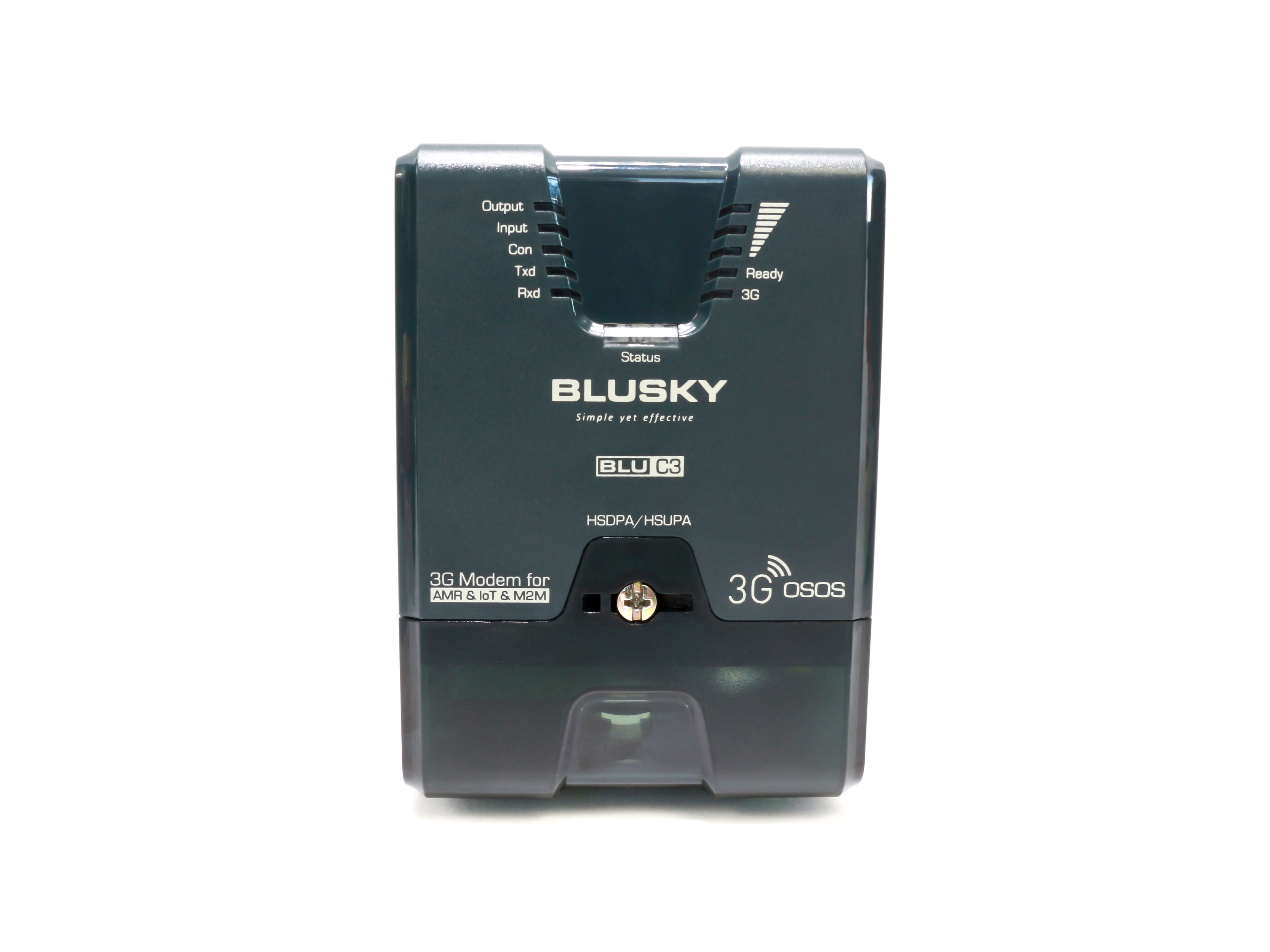

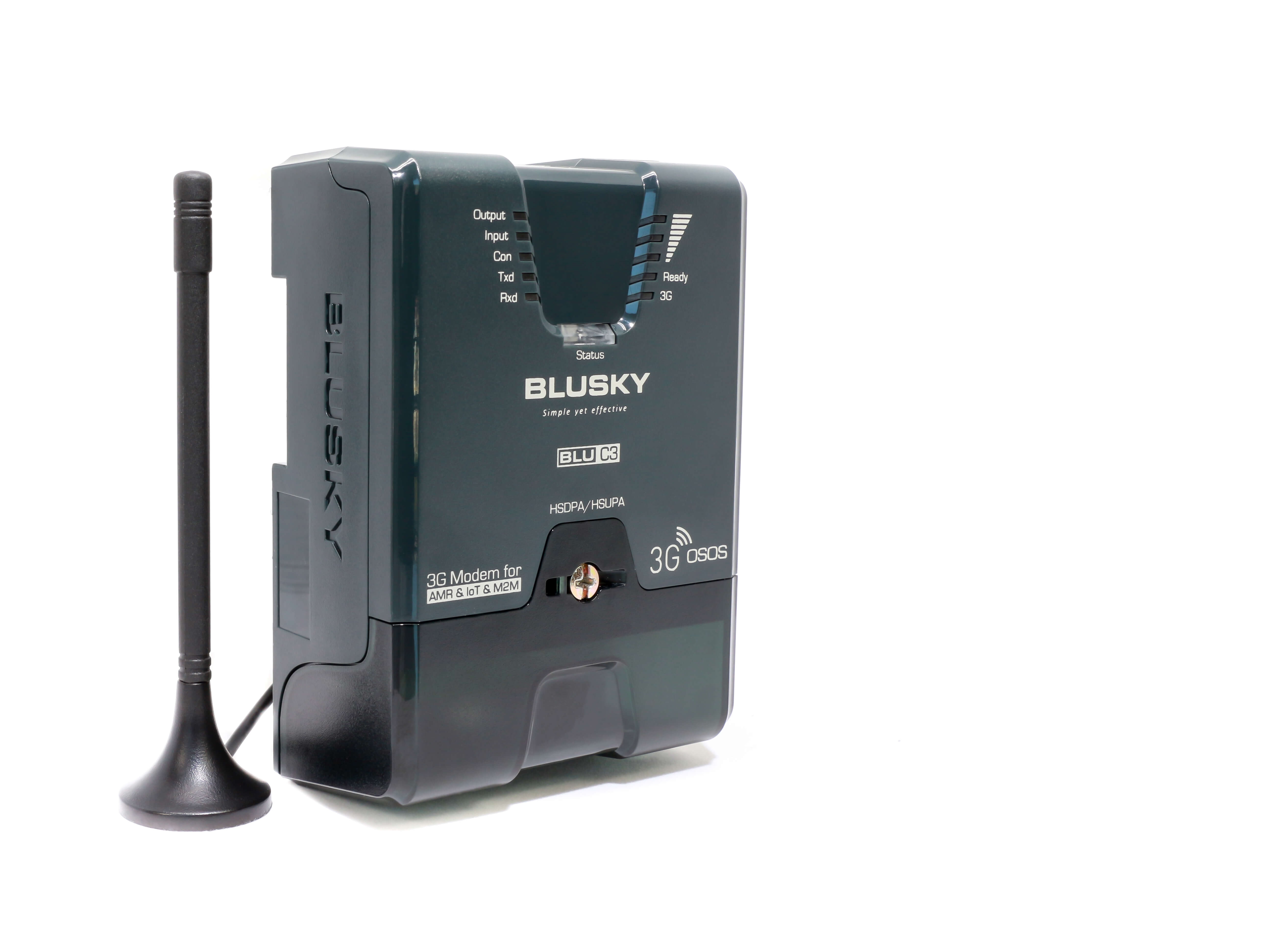

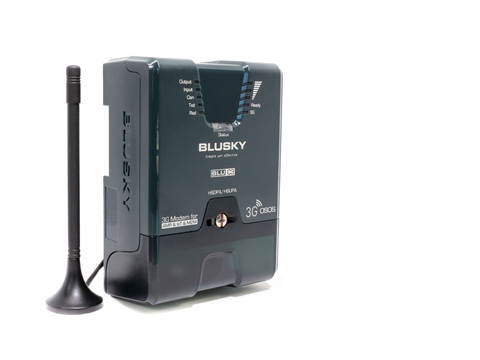

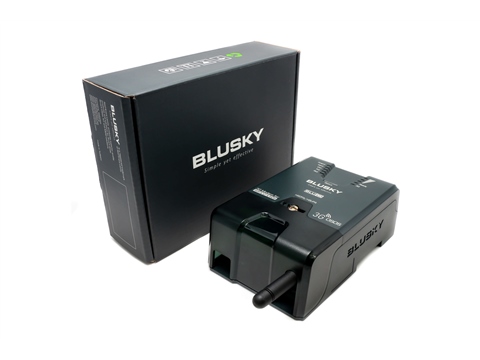

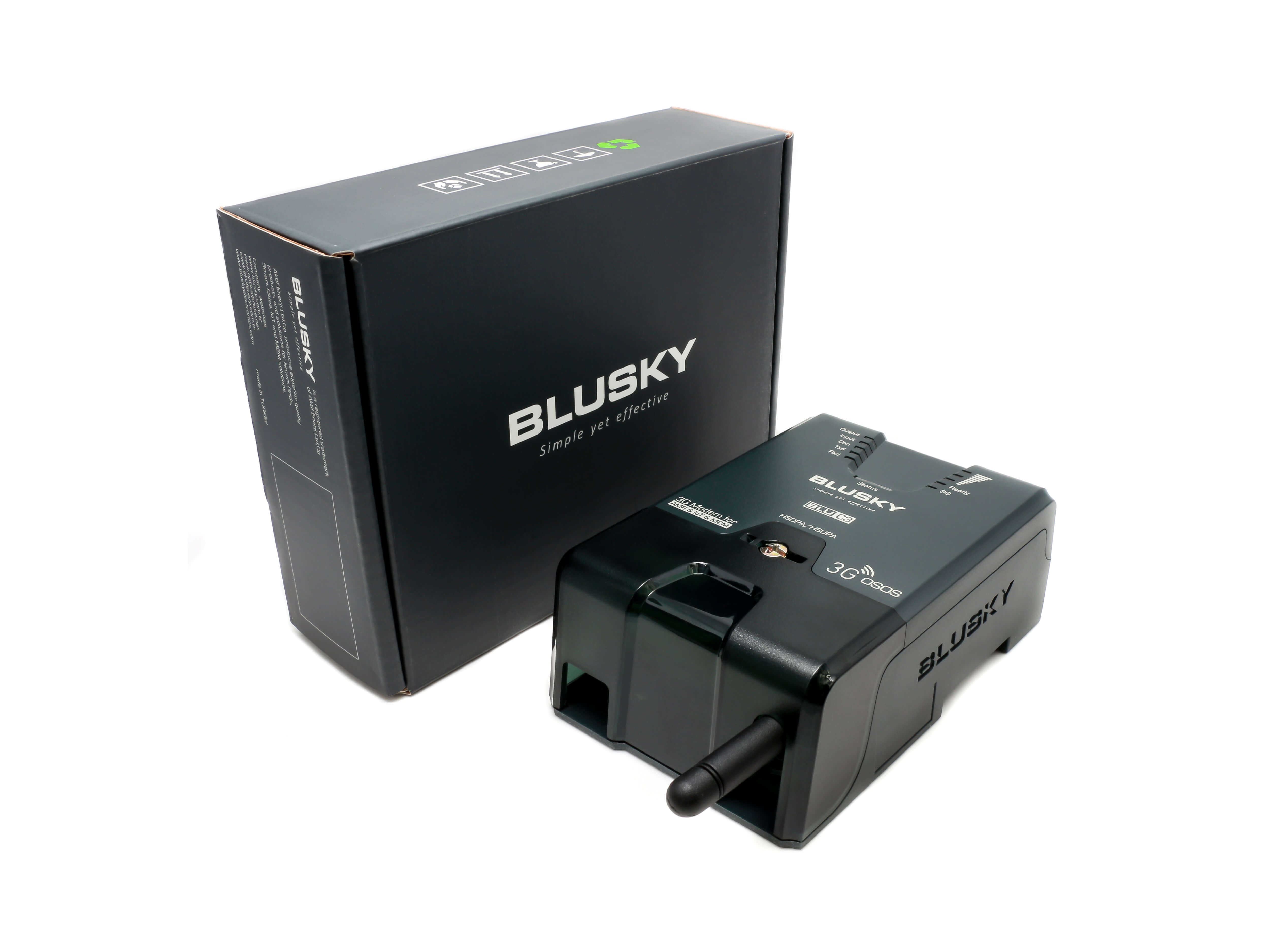

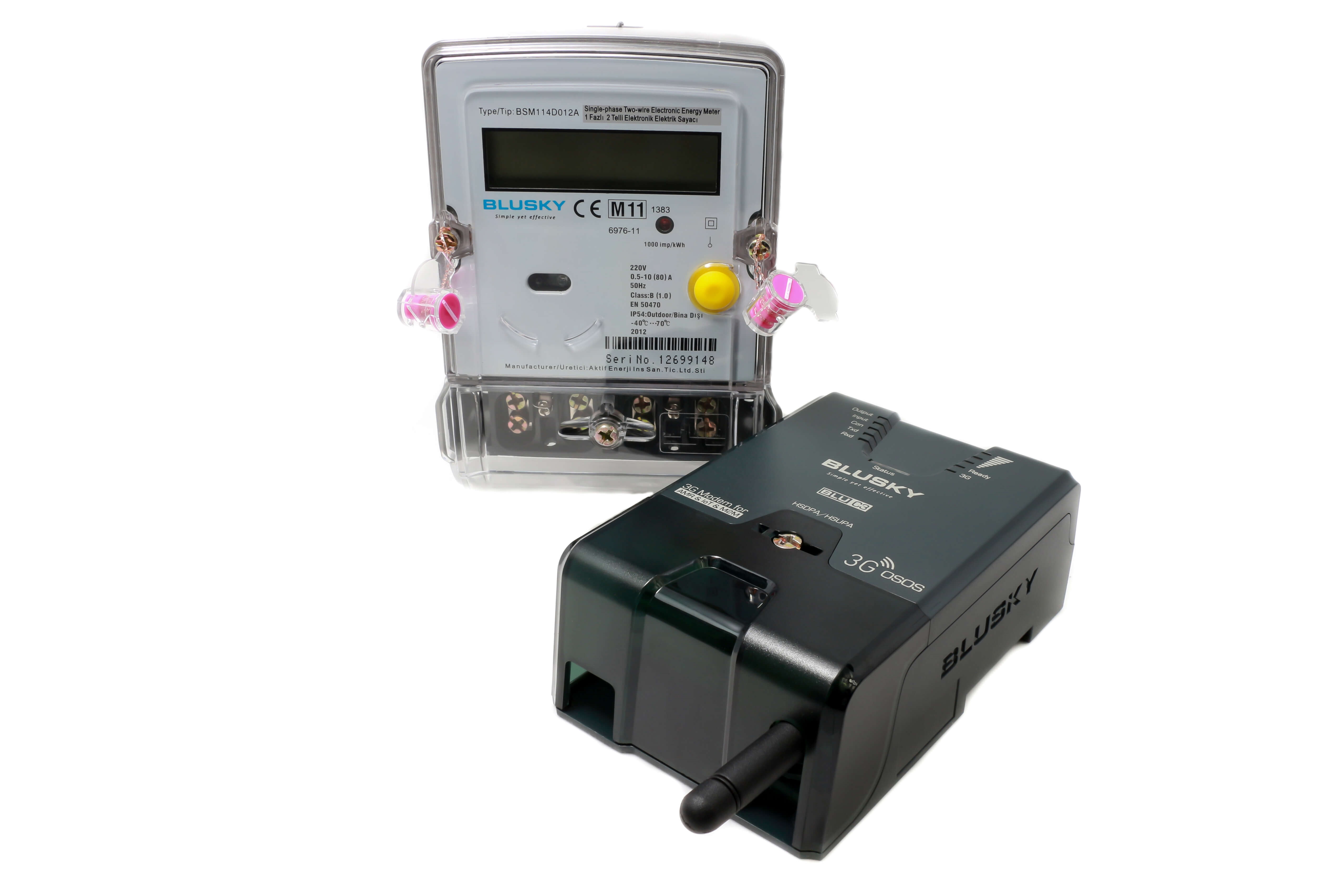

BLU C3 3G AMR MODEM
