BLU C3/BSC9351R1

BLU C3 / BSC9351R1 Our 3G Modem is the base model that offers 24VDC power supply options. It is an industrial type 3G modem designed for use in Smart Grids that offering remote access. Also, It may be preferred for use in different areas of industry. Our products are that meets the specifications of EMRA for Turkey. It supports to IEC 62056-21, DLMS / COSEM, and MODBUS RTU standards. Sealable cover prevents unwanted access and removing from panel. The supply voltage is in the range of 9-36VDC. It provides 1x RS485 port, 1x Relay and 1x Input port. Modems that can be used in Server or Client mode. You can update the firmware or settings of your modem closely or remotely. You can track all processes with 11 leds. You can find all the documents and utilities belonging to our modems on this page and buy them without leaving our website.

Power Supply

: 7-24 VAC / 9-36VDC

Maximum Current

: 700 mA /24VDC

Working Band

: WCDMA:B1/B8 and GPRS/GSM:900/1800MHz

Running Mode

: Server and Client Mod Supported

Com. Ports

: 1 Unit Half Duplex RS485 Comm. Port

Temperature Range

: -30ºC to + 70ºC Operation, -40ºC to + 80ºC Storage

Protection Class

: IP54 Environmental Conditions and UL94-V0 Non-Flammability Class

Inputs

: 1 Unit 10-48V DC, 5000V Isolated Input

Outputs

: 1 Unit 250V / 10A, NO Contact Relay Output

Super Capasitor

: Not Supported

Sealable Terminal Cover

: Semi Transparent Terminal Cover With Screw

Installation

: 35 mm. DIN Rail and Screw Mounting Option

Rated Current

: 250 mA /24VDC

Impulse Res.

: 1000V

Data

: HSPA/HSPA+, EDGE, GPRS

Port Isolation

: 15kV ESD Protected

PC Com. Port

: USB 2.0 Micro USB Socket

Supported Custom Protocols

: IEC62056-21, DLMS/COSEM and MODBUS RTU

Weight

: 380 Gr.

Antenna

: 3dBi GSM / GPRS Antenna with ,3 mt. Wired, Magnet Based and 50Ω SMA Connector

RTC

: Not Supported

Smart Communication

: Not Supported

Additional Memory

: Not Supported

Indicators

: 11 Units Status and Process Tracking Leds

Click the link on the right to download the product brochure

Product Brochure

BLU C3 / BSC9351R1 Our 3G Modem is the base model that offers 24VDC power supply options. It is an industrial type 3G modem designed for use in Smart Grids that offering remote access. It supports to IEC 62056-21, DLMS / COSEM, and MODBUS RTU standards. Sealable cover prevents unwanted access and removing from panel. The supply voltage is in the range of 9-36VDC. It provides 1x RS485 port, 1x Relay and 1x Input port. You can track all processes with 11 leds. You can find all the documents and utilities belonging to our modems on this page and buy them without leaving our website.

Buy Now

C3 3G Pic3

Automatic Meter Reading (AMR) and Meter Automation Projects
Electricity Distribution Companies' AMI/AMR * Projects
Organized Industrial Zones' AMI/AMR * Projects
Energy Monitoring Projects of Factories
Shopping Centers' AMI/AMR * Projects
Free Consumer consumption tracking and billing projects
Cloud-Based Individual Energy Monitoring Solutions (with Gridmaster Energy Management Software)
Compensation Tracking Projects
Waste Water Management Projects
Lighting Management Projects
Solar Power Plant Monitoring and Control Projects
Wind Power Plants Monitoring and Control Projects
Natural Gas Stations Monitoring and Control Projects
Meteorological Monitoring and Control Projects
Agricultural Irrigation and Monitoring Projects
Electricity, Water, Heat and Natural Gas Tracking and Billing Projects on Public Housing
Prepayment Systems

* AMI/AMR: Advanced Metering Infrastructure / Automatic Meter Reading System

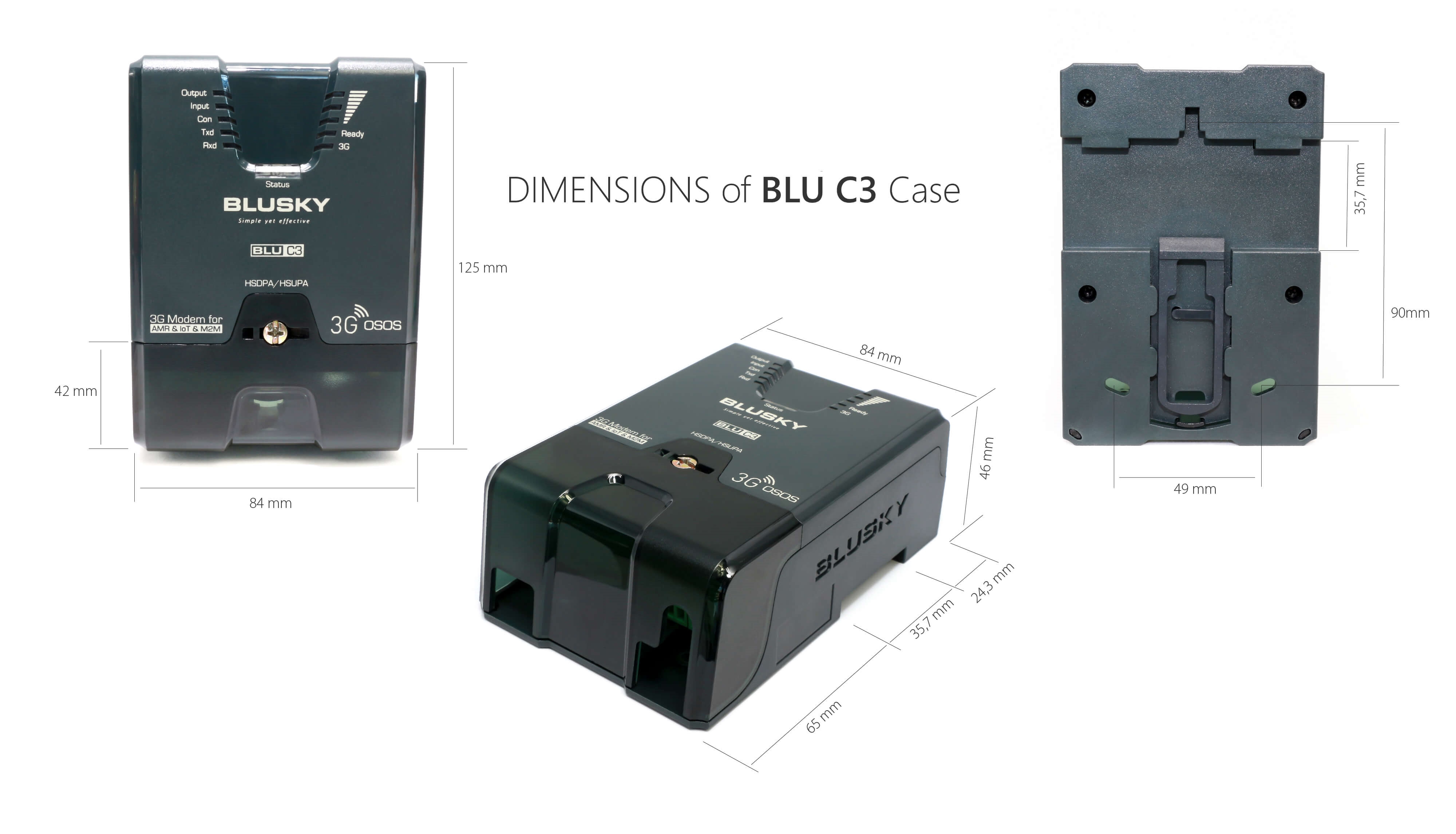

C3 3G Dim

C3 3G Term 24 ENG
