GSM/GPRS
Firmware Update Remotely
USB 2.0
-30ºC , +70ºC
UL94V0 - IP54
Double RS485 Ports
RTC
2 Inputs & 2 Relays
Super Capasitor
85-265VAC Power Supply

BLU C2/BSC9252R3

Delivery in four or six weeks

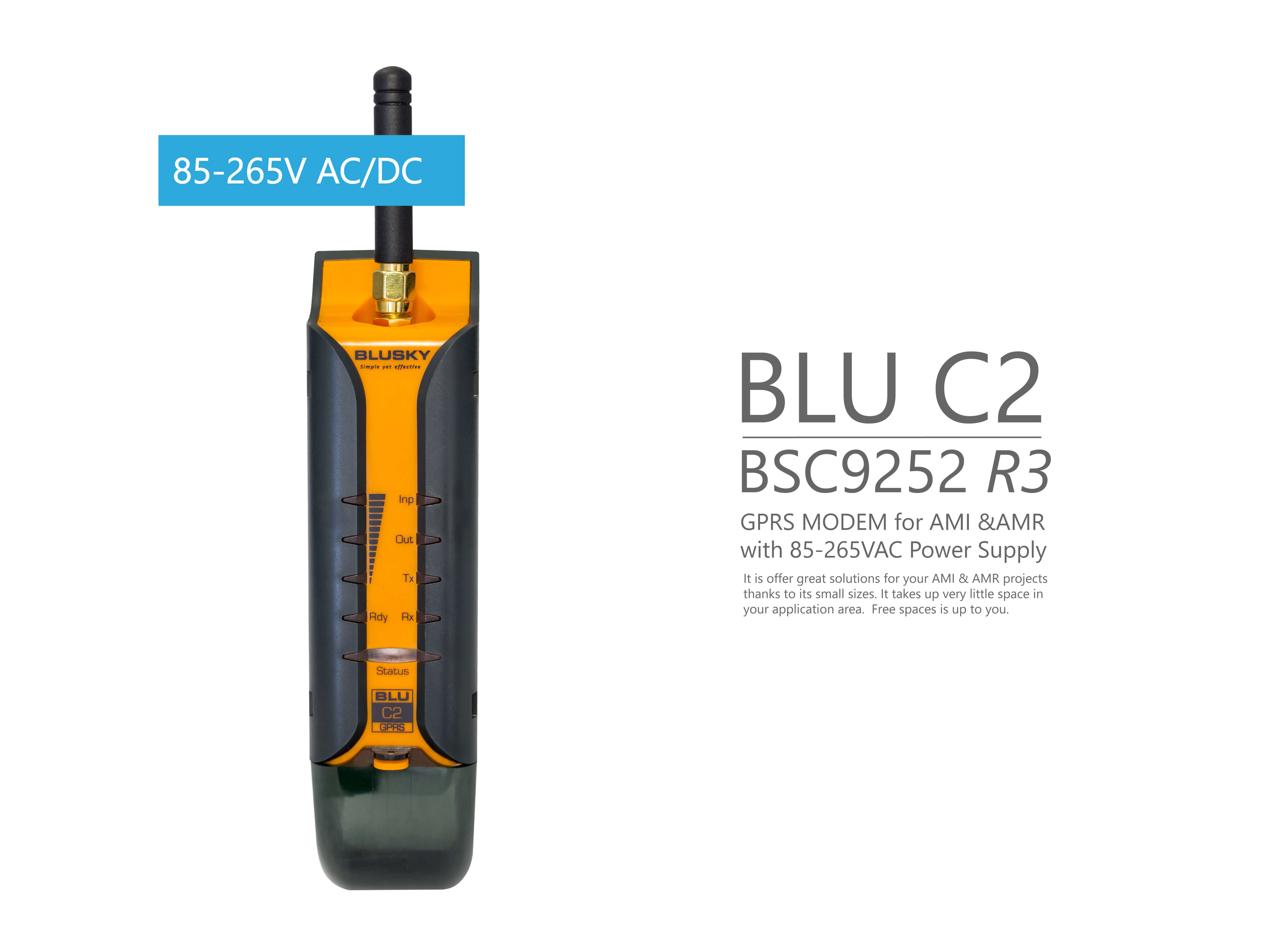

BLU C2 / BSC9252R3 Our GSM / GPRS Modem is a top model that offering 220VAC power supply. Additionally to sub model it provides 2nd Input Port, 2nd Output Port, Super Capasitor and  Additional Memory features. Thanks to the super capacitor, you will immediately notice your energy interruptions. With additional memory, it can also logging events. It is an industrial type GSM / GPRS modem designed for use in Smart Grids that offering remote access. Also, It may be preferred for use in different areas of industry. It supports to IEC 62056-21, DLMS / COSEM, and MODBUS RTU standards. Thanks to small dimensions it takes up little space and provides ease of installation. The supply voltage is in the range of 85-265VAC. It provides 2x RS485 ports, 2x Relays, 2x Input ports, Real Time Clock(RTC), Super Capasitor and  Additional Memory  features. Modems that can be used in Server or Client mode. You can update the firmware or settings of your modem closely or remotely. You can track all processes with 9 leds. You can find all the documents and utilities belonging to our modems on this page and buy them without leaving our website.

Power Supply



 : 85-265VAC / 110-320VDC

Maximum Current



 : 250 mA /220VAC

GPRS Band



 : Quad Band (850/900/1800/1900 Mhz)

Running Mode



 : Server and Client Mod Supported

Com. Ports



 : 2 Unit Half Duplex RS485 Comm. Port

Temperature Range



 : -30ºC to + 70ºC Operation, -40ºC to + 80ºC Storage



Protection Class



 : IP54 Environmental Conditions and UL94-V0 Non-Flammability Class

Inputs



 : 2 Unit 10-48V DC, 5000V Isolated Input

Outputs



 : 2 Unit 250V / 5A, NO Contact Relay Output

Super Capasitor



 : 1-5 Min. Can Run Modem and Report Energy Interruption Information.

Sealable Terminal Cover



 : Semi Transparent Terminal Cover

Installation



 : 35 mm. DIN Rail and Screw Mounting Option

Rated Current



 : 25 mA /220VAC

Impulse Res.



 : 6000V

GPRS Class



 : Multi-Slot Class 10 (4 Down; 2 Up; 5 Total)

Port Isolation



 : 15kV ESD Protected

PC Com. Port



 : USB 2.0 Mini USB Socket

Supported Custom Protocols



 : IEC62056-21, DLMS/COSEM and MODBUS RTU

Weight



 : 245 Gr

Antenna



 : 3dBi GSM / GPRS Antenna with ,3 mt. Wired, Magnet Based and 50Ω SMA Connector

RTC



 : High precision Real Time Clock (without battery)

Smart Communication



 : Not Supported

Additional Memory



 : 4 Mbytes for Log and Device Data Records

Indicators



 : 9 Units Status and Process Tracking Leds

Click the link on the right to download the product brochure.

 Product Brochure

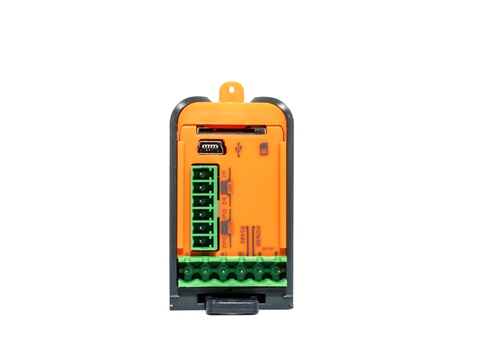

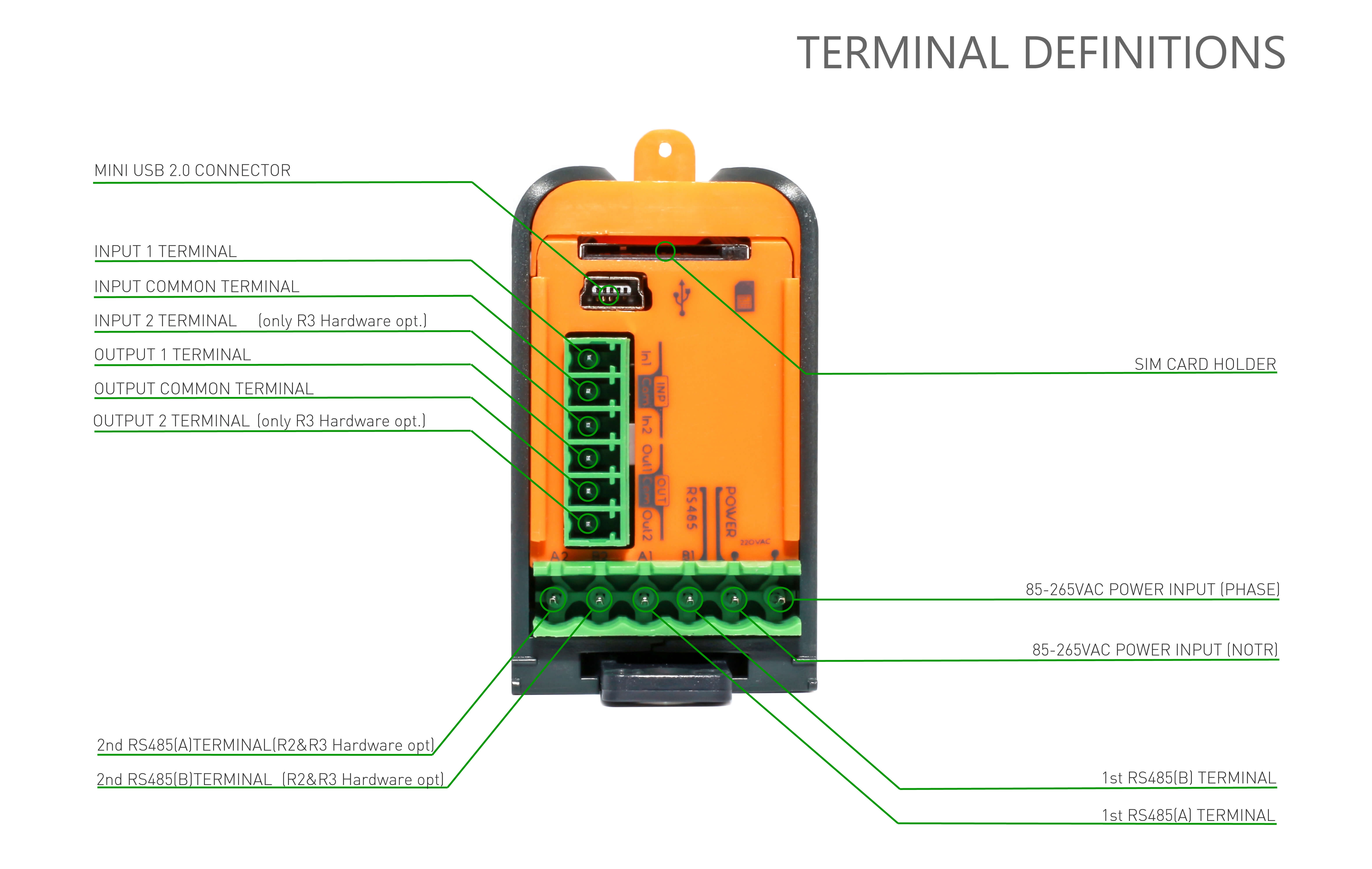

BLUC2-terminal eng-220

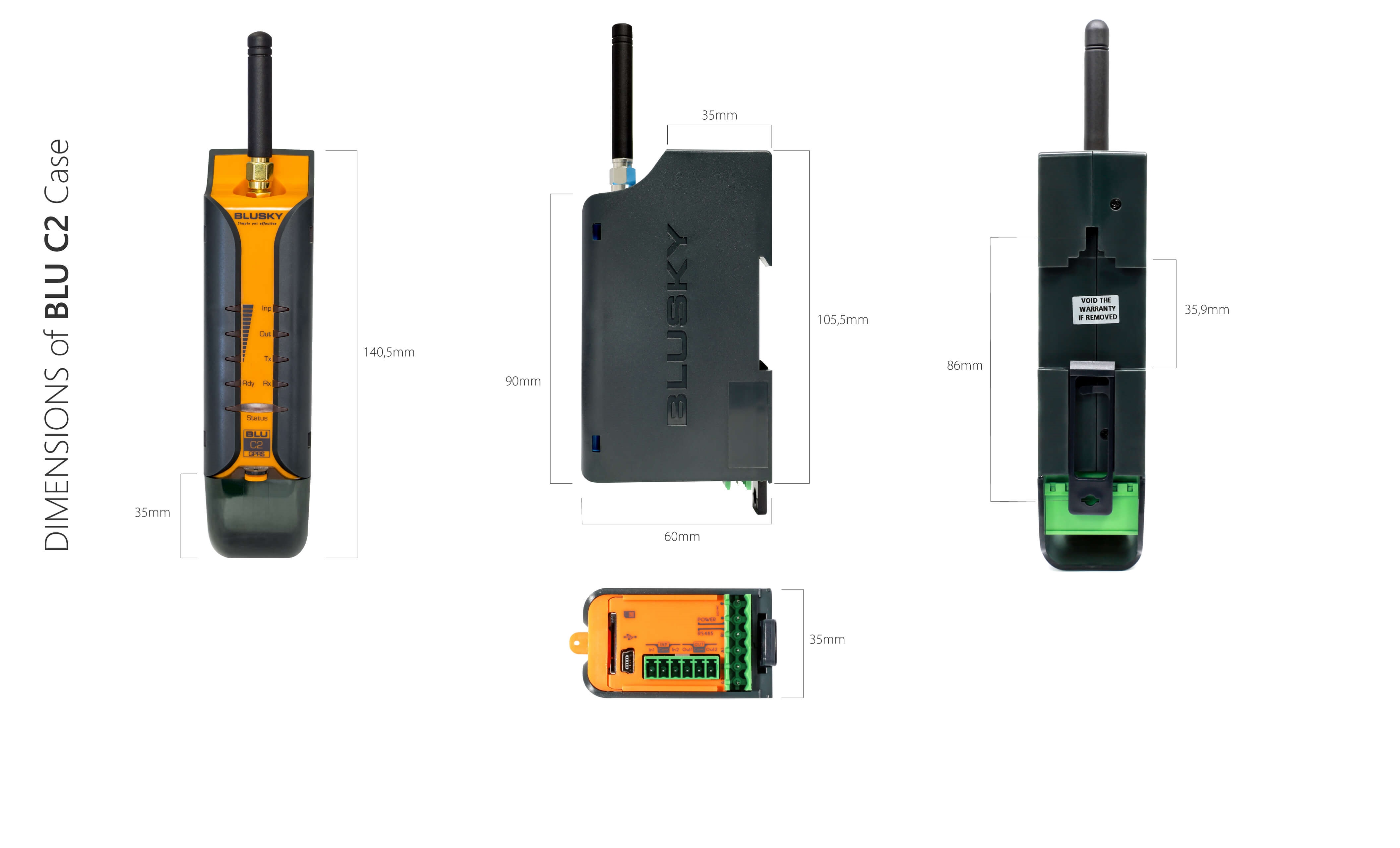

blu c2 dim

BLU C2 / BSC9252R3 Our GSM / GPRS Modem is a top model that offering 220VAC power supply. Additionally to sub model it provides 2nd Input Port, 2nd Output Port, Super Capasitor and  Additional Memory features.  It supports to IEC 62056-21, DLMS / COSEM, and MODBUS RTU standards. Thanks to small dimensions it takes up little space and provides ease of installation. The supply voltage is in the range of 85-265VAC. It provides 2x RS485 ports, 2x Relays, 2x Input ports, Real Time Clock(RTC), Super Capasitor and  Additional Memory  features. You can track all processes with 9 leds. You can find all the documents and utilities belonging to our modems on this page and buy them without leaving our website.

Buy Now

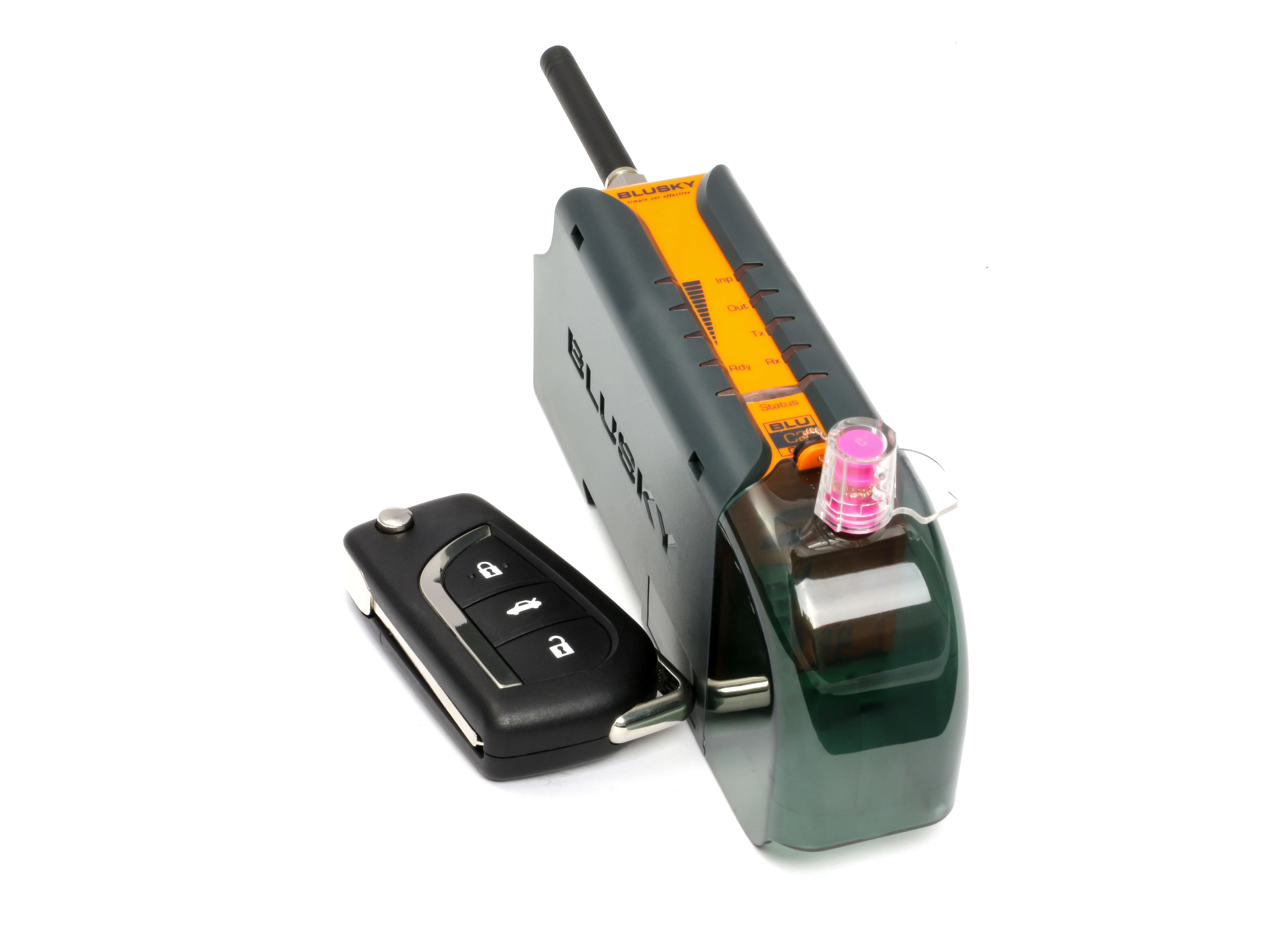

BLU C2 Pic5


  • Automatic Meter Reading (AMR) and Meter Automation Projects
  • Electricity Distribution Companies' AMI/AMR * Projects
  • Organized Industrial Zones' AMI/AMR * Projects
  • Energy Monitoring Projects of Factories
  • Shopping Centers' AMI/AMR * Projects
  • Compensation Tracking Projects
  • Waste Water Management Projects
  • Lighting Management Projects
  • Solar Power Plant Monitoring and Control Projects
  • Wind Power Plants Monitoring and Control Projects
  • Natural Gas Stations Monitoring and Control Projects
  • Meteorological Monitoring and Control Projects
  • Agricultural Irrigation and Monitoring Projects
  • Electricity, Water, Heat and Natural Gas Tracking and Billing Projects on Public Housing
  • Prepayment Systems


    * AMI/AMR: Advanced Metering Infrastructure / Automatic Meter Reading System

Gallery

All Photos Videos

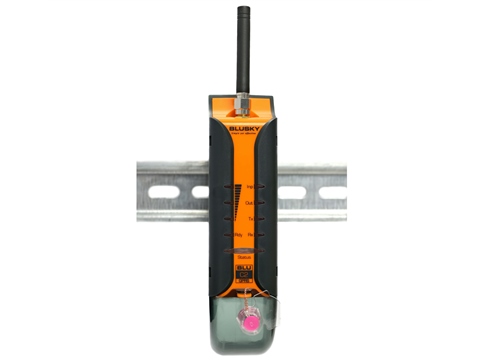

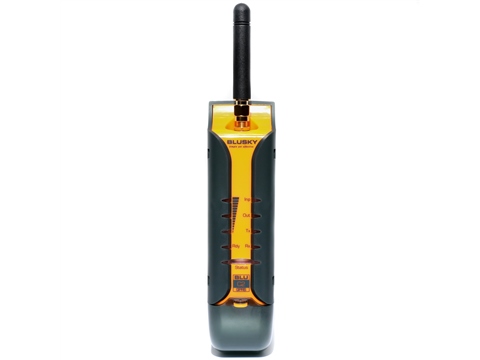

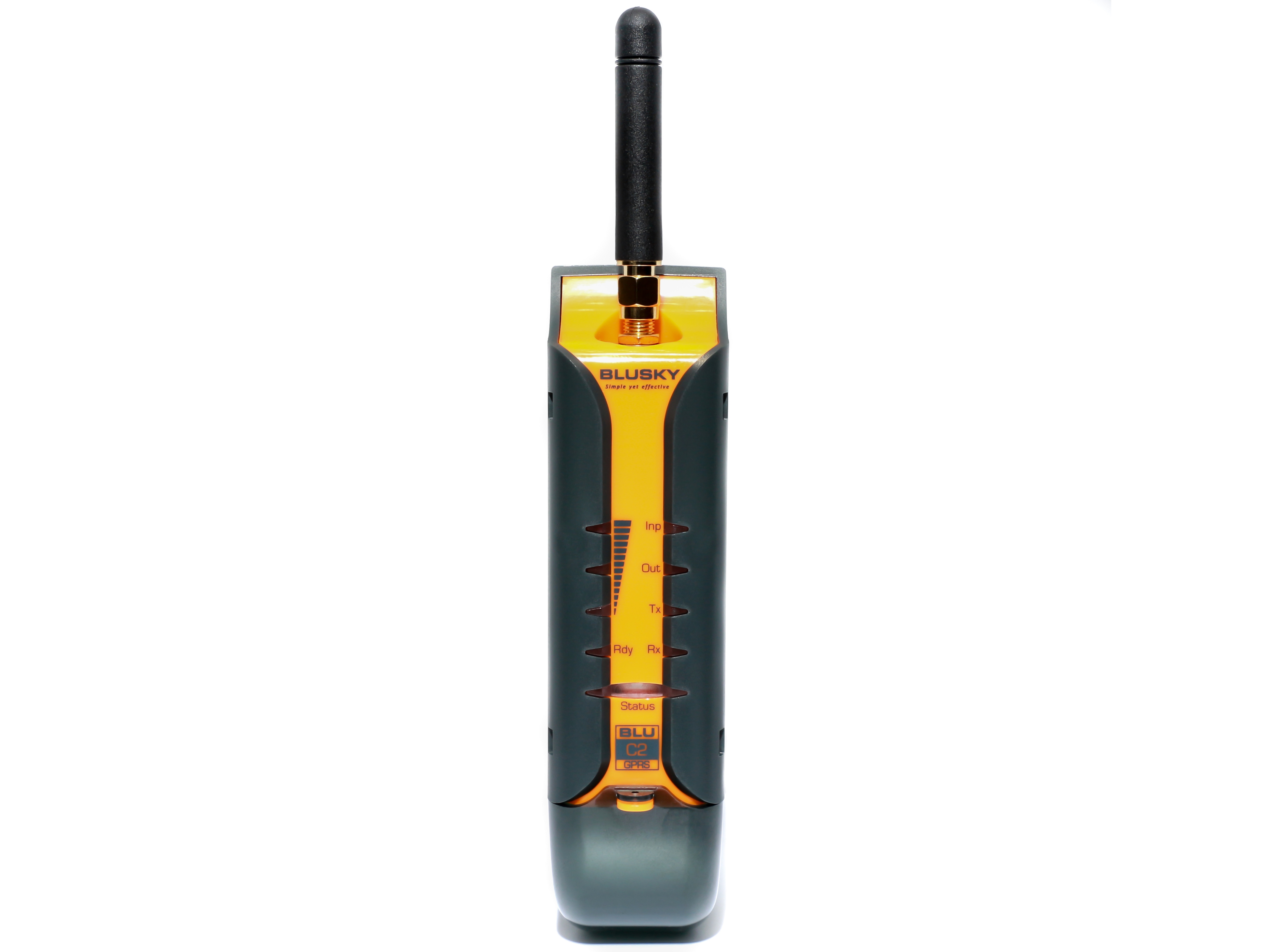

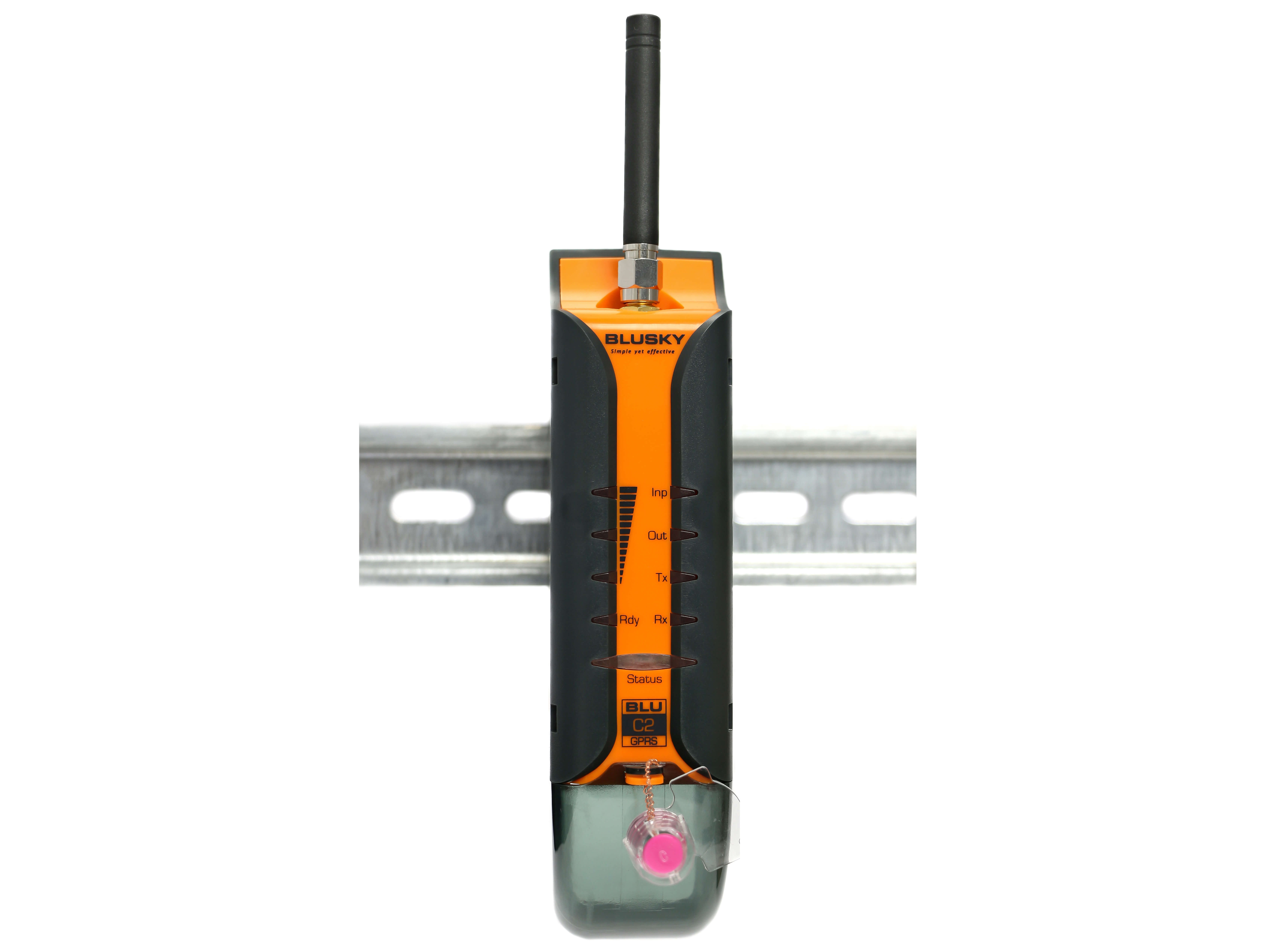

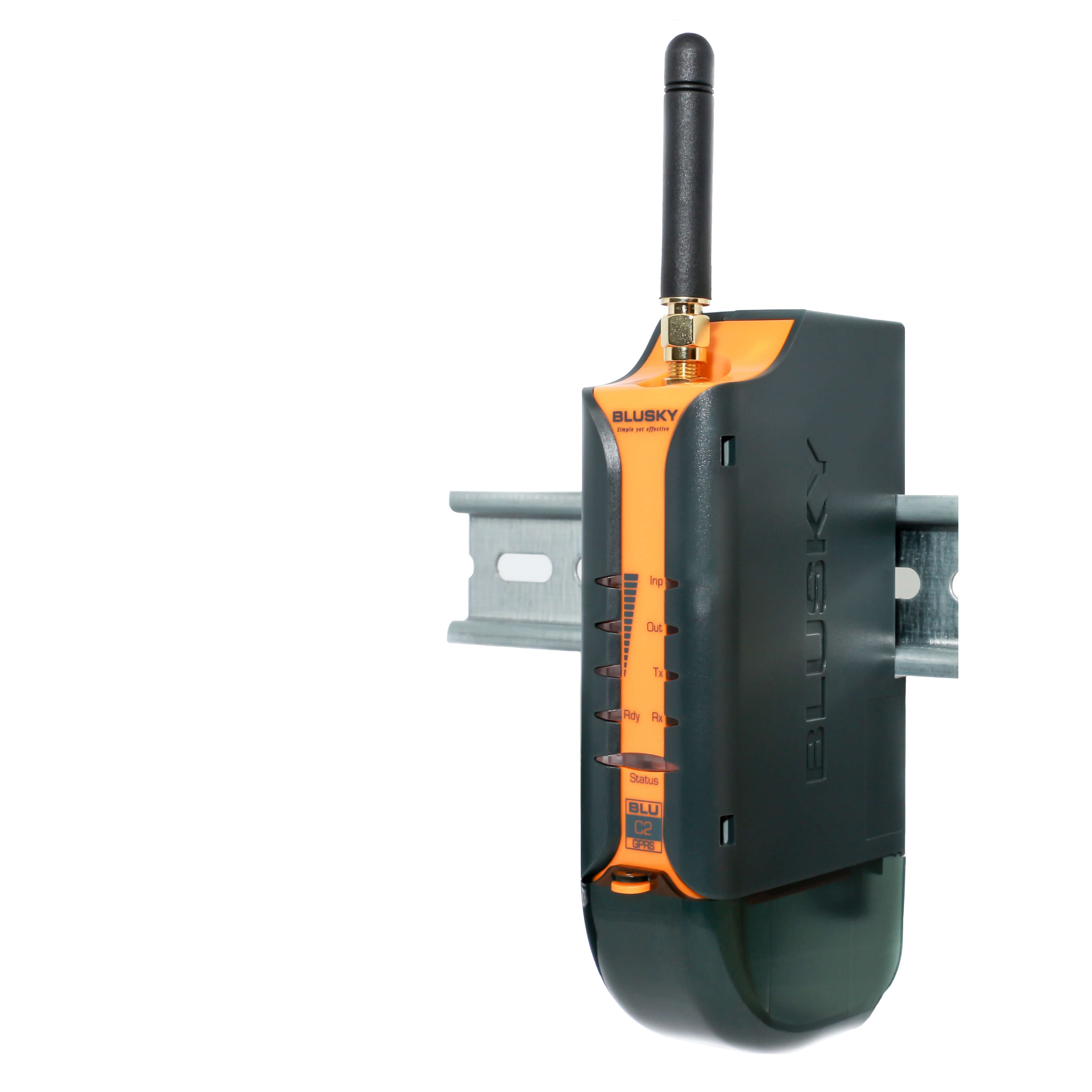

BLU C2/BSC9252R3
